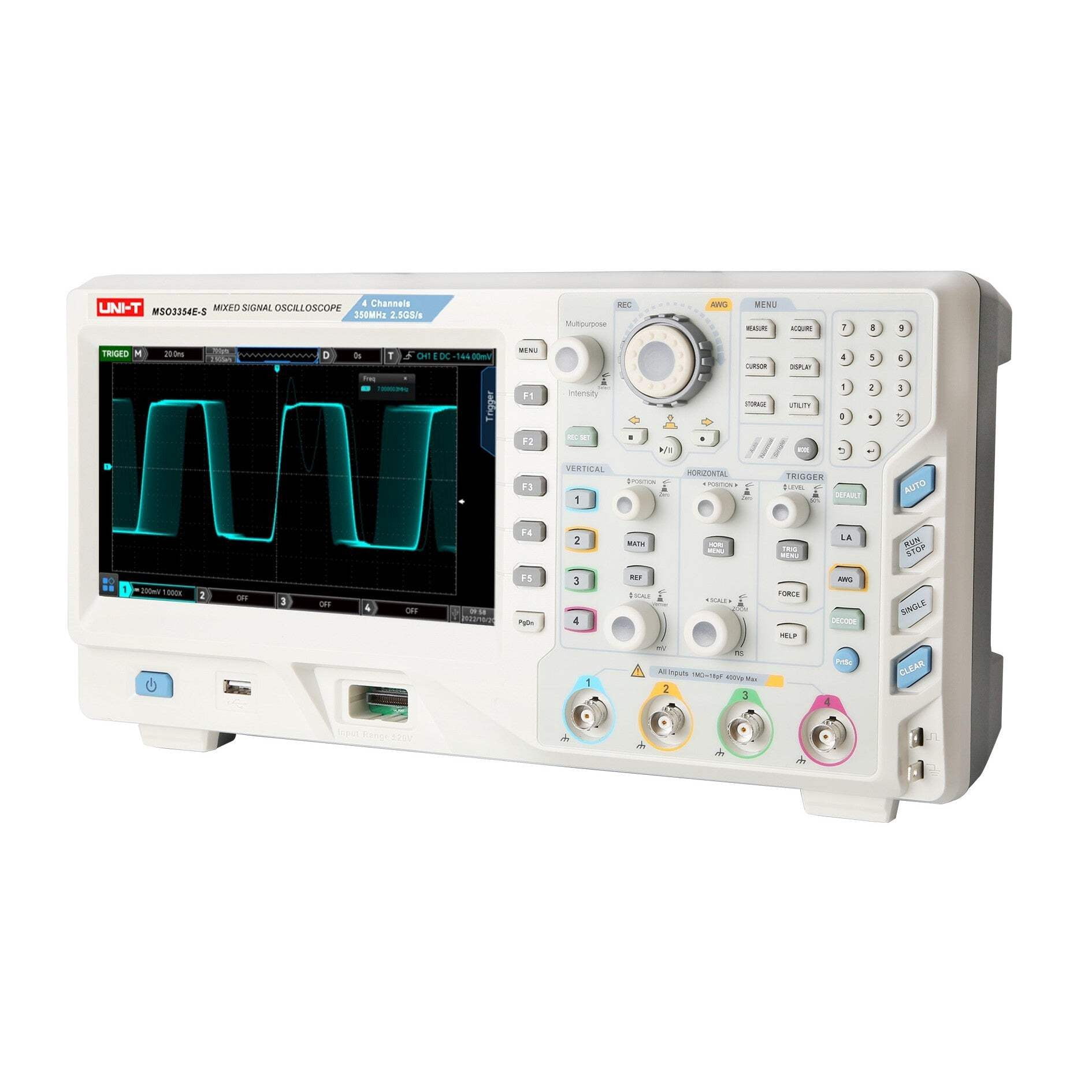

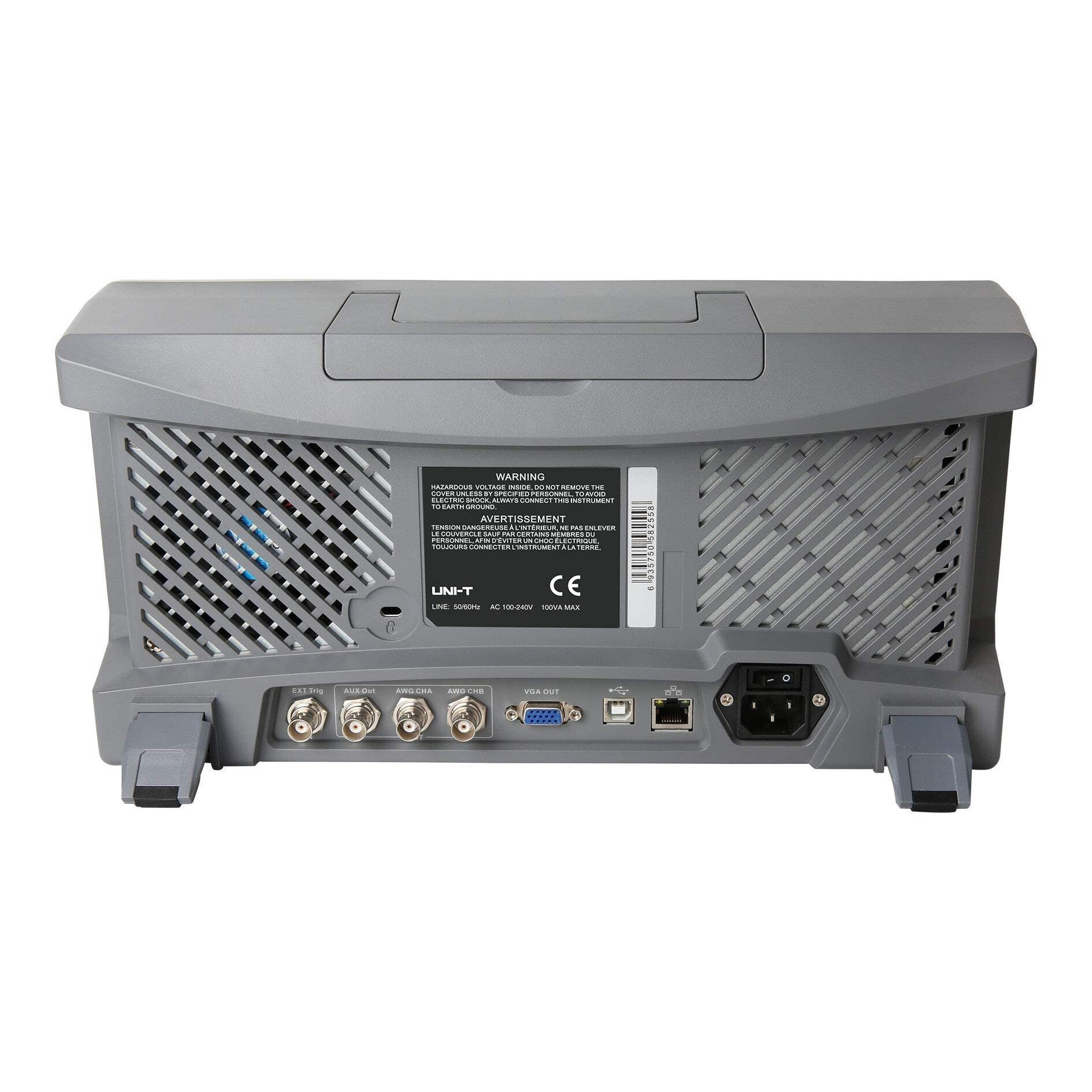

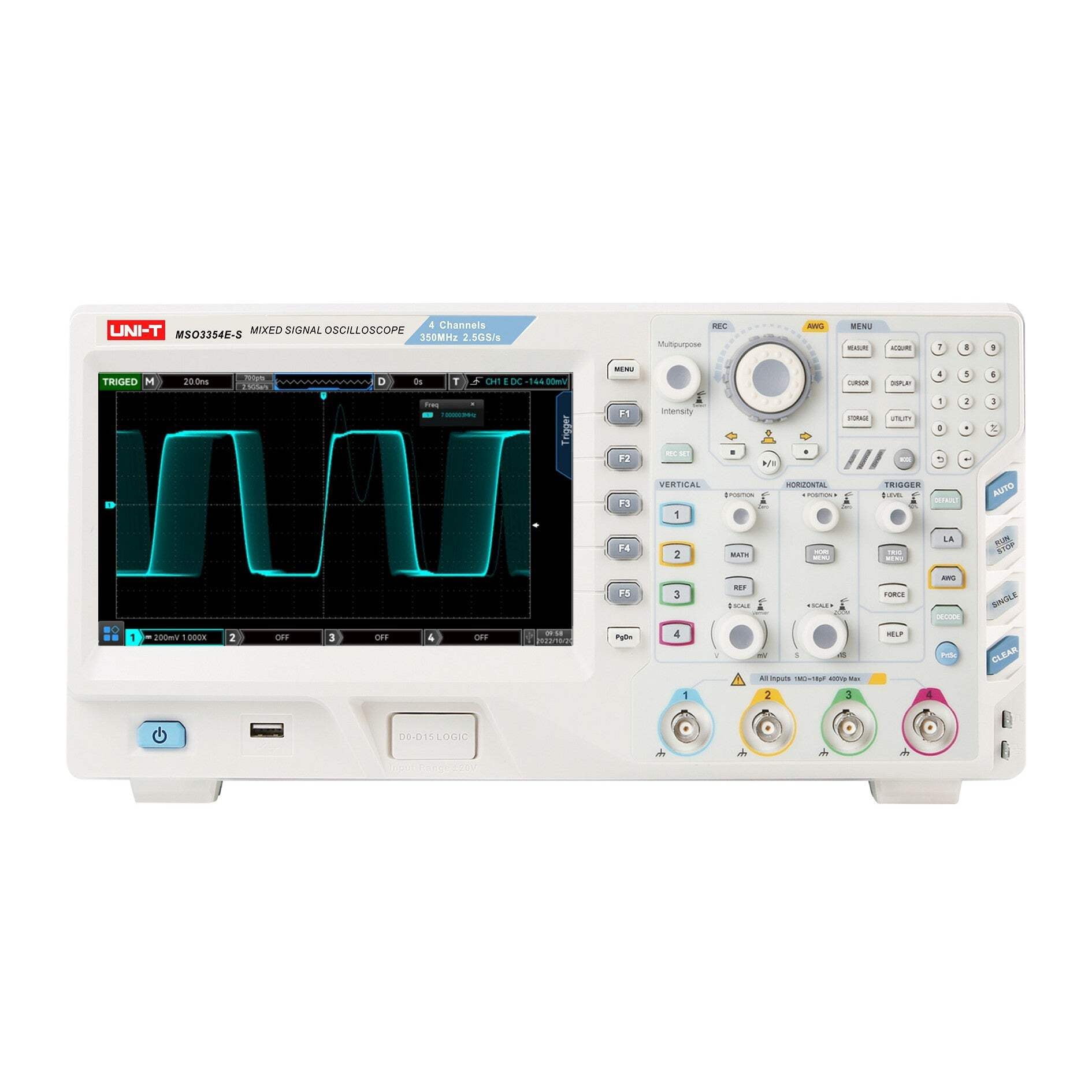

UNI-T MSO3354E-S 350MHz 4+16Ch MSO Digital Oscilloscope with Signal Generator

Unlocking Oscilloscope Excellence with the UNI-T MSO3354E-S Mixed Signal Oscilloscope (MSO)MSO3354E-S Oscilloscope AWG Function<p><strong>Experience the ultimate in oscilloscope technology with the UNI-T MSO3354E-S Mixed Signal Oscilloscope (MSO).</strong> Designed for engineers seeking precise and versatile signal analysis, this oscilloscope is equipped with a wealth of advanced features and functions, ensuring you can accurately capture and display your signal of interest. Explore its extensive trigger capabilities, impressive memory depth, and robust logic analyzer functions. Plus, it's not just an oscilloscope–it's a multi-function instrument, offering frequency meter and digital voltmeter (DVM) capabilities for comprehensive measurements.</p>UNI-T MSO3354E-S Mixed Signal Oscilloscope Top Specifications:<ul><ul><li><strong>Bandwidth:</strong> 350MHz</li><li><strong>Analog Channels:</strong> 4</li><li><strong>Digital Channels:</strong> 16 (UT-M15 Logic probe included)</li><li><strong>Function Generator:</strong> 50MHz ARB Included</li><li><strong>Real-Time Sample Rate:</strong> 2.5GSa/s</li><li><strong>Max. Memory depth:</strong> 250Mpts</li></ul></ul>MSO3354E-S Oscilloscope Bode Plot<ul><li><strong>Waveform Capture Rate:</strong> 200,000wfms/s</li><li><strong>Display:</strong> 8in Multi-point Capacitive Touchscreen</li></ul>Unleash the Power of Oscilloscope Excellence with the UNI-T MSO3354E-S Mixed Signal Oscilloscope<p><strong>Advanced Trigger Functions:</strong> The UNI-T MSO3354E-S Mixed Signal Oscilloscope offers a wealth of advanced trigger and bus trigger functions, allowing you to precisely and quickly capture your signal of interest. Choose from triggers such as edge, pulse width, video, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup hold, Nth edge, and pattern trigger.</p><p><strong>Area Trigger:</strong> Enhance your signal capture capabilities with the UNI-T MSO3354E-S Mixed Signal Oscilloscope’s area trigger, seamlessly complementing basic, advanced, and protocol triggers. It's your tool of choice for capturing occasional and complex characteristic signals.</p><p><strong>Efficient Pass/Fail Analysis:</strong> Simplify quality assurance and production tasks with the pass/fail test function. Set a standard waveform and compare others against it, triggering a failure output signal for any measured signal outside of the defined thresholds. Ideal for ensuring quality and consistency.</p><p><strong>Logic Analysis Probe UT-M15:</strong> Analyze digital signals with ease using the UT-M15 probe included with the UNI-T MSO3354E-S Mixed Signal Oscilloscope. This probe comes with two 8-channel probes and simplifies connection to the device under test. Benefit from excellent electrical characteristics, including a 101kΩ input impedance and a capacitive load of only 9.0pF.</p>MSO3354E-S Oscilloscope LA Logic Analyzer<p><strong>Robust Logic Analyzer:</strong> Explore parallel bus analysis, protocol decoding, and timing measurements with the UNI-T MSO3354E-S Mixed Signal Oscilloscope's comprehensive logic analyzer functions. Configure preset or user-defined values for logical 1 and 0 and utilize features like Rank Selection, Data Bus Setting, Group Setting, Event Lists, and more.</p><p><strong>Multi-Function Instrument:</strong> Beyond its oscilloscope capabilities, the UNI-T MSO3354E-S Mixed Signal Oscilloscope serves as a versatile multi-function instrument. It acts as both a frequency meter and a digital voltmeter (DVM), supporting multi-channel independent AC/DC true RMS measurements for comprehensive data gathering.</p><p><strong>Swift Full Memory Hardware Decoding:</strong> Experience lightning-fast decoding performance, even with a deep storage capacity of 250Mpts. The UNI-T MSO3354E-S Mixed Signal Oscilloscope significantly reduces decoding time from seconds to milliseconds, facilitating real-time decoding and efficient problem diagnosis. Recorded waveforms also support full-mem</p>
